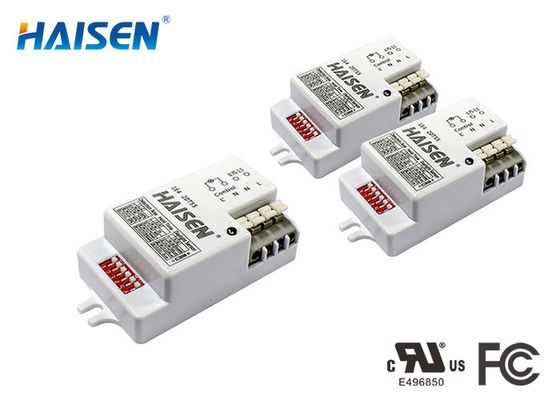

Wall Mounted Outdoor Microwave Sensor Adjustable Detection Area Via DIP Switch

Place of Origin China
Brand Name HAISEN
Certification UL FCC
Model Number HD401S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Operating Voltage 120~277 VAC 50/60Hz Switching Capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Interfaces 4-pole Pluggable Clamp Terminal(L,N,N,L’)for 0.75-1.5mm 2 Cable Detection Angle 30°-150°
Operating Temperature -20°C~+60°C IP Rating IP20
High Light

microwave motion sensor

,

external microwave sensor

Leave a Message
Product Description

For Ceiling Light Microwave Movement Sensor Compact Design 120-277VAC Operated





Features:

  • Super Compact size of 80.2X36.6X23mm, suitable for different led fittings,easy to instal.
  • Detection area, hold time and daylight sensor are selectable via DIP switch.
  • 5.8GHz high frequency microwave.
  • 4-pole press-in terminal (L, N,N,L′),easy assembly.
  • Detection area,10%/50%/75%/100%.
  • Hold time,5s/90s/5min/15min.
  • Daylight threshold,2Lux/10Lux/50Lux/Disable.
  • 5 Years Guarantee.

Detailed Product Description

   Operating voltage    120~277 VAC 50/60Hz
   Switching capacity    Max.3.0A@120Vac,Max.2.0A@277Vac
   Stand-by power    <1W
   Detection area    10%/50%/75%/100%
   Hold time    5s/90s/5min/15min
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Mounting height    Max.6m(ceiling mounted),Max.3m(wall mounted)
   Detection range    Max.ø14m(ceiling mounted),Max.10m(wall mounted)
   Detection angle    30°-150°
   Operating temperature   -20°C~+60°C
   Life time    50,000 hours
   Warranty    5 years







Wiring diagram

Size

Detection coverage

DIP Switch Setting

Demo

When motion detected, but sufficient daylight,,light remains OFF.

When motion detected, insufficient daylight,light ON.

After the last detection and the present Hold time elapsed,light OFF.



Application

Stairwell, corridor, balcony, pathway, warehouse,etc
