Tripoof Light Microwave Movement Sensor Energy Saving With 150° Detection Angle

Place of Origin China
Brand Name HAISEN
Certification ROHS, CE
Model Number HD02S-6 2
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Operating Voltage 220~240 VAC 50/60Hz Switching Capacity Max.400W(Control Gear) Max.800W(Incandescent Lamp)
Stand-by Power ≤0.5W Microwave Frequency 5.8GHz±75MHz
Mounting Height Max.4.5m(ceiling Mounted) Detection Range Max.ø12m(ceiling Mounted)
Operating Temperature -20°C~+55°C Warranty 5 Years
High Light

microwave motion sensor

,

external microwave sensor

Leave a Message
Product Description

For Tripoof Light Microwave Motion Sensor With 150° Detection Angle Energy Saving





Features:

  • ON-off Function for tri-proof lighs.

  • Stand-by power ≤ 0.5W.

  • Detection area,10%/50%/75%/100%.

  • Hold time,5s/90s/5min/15min.

  • Daylight threshold,2Lux/10Lux/50Lux/Disable.

  • Detection area, hold time and daylight sensor could be set via DIP Switch at back.

  • 5 Years Guarantee.

  • 50000h @ Ta Full load.



Description:

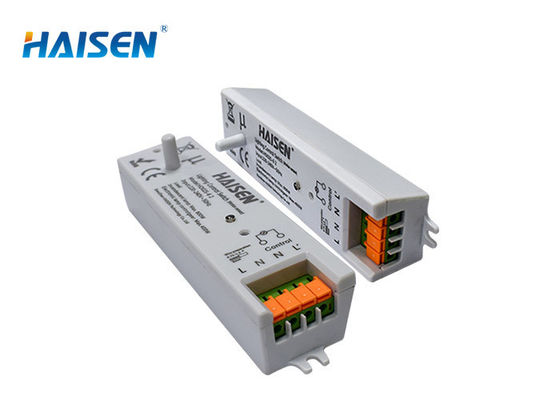

       Rod antenna design HD02S-6 2, It automatically switches on/off light based on motion and ambient light level. Motion can be detected through plastic, glass and thin non-metal materials.



Detailed Product Description

 Input  Voltage Range  120-277Vac 50/60Hz
 Output  Load Type  Max.400W(Control gear)
Max.800W(Incandescent lamp)
 Stand-by Power  ≤0.5W
 Sensor Parameters  Hold time  5s/90s/5min/15min
 Detection Area  10%/50%/75%/100%
 Daylight Sensor  2lux/10Lux/50Lux/disable
 Mode  Constant on mode/Sensor mode
 Mounting Height  Ceiling mounting 4.5m
 Sensing Area  Max.ø12m(ceiling mounted)
 Wireless Parameters  Operating Frequency  5.8 GHz ±75 MHz
 Dimming Control  0N/0FF
 Operating Environment  Operating Temperature  -20°C~+55°C
 Safety & EMC  Certificate Requirement  ROHS, CE
 Others  Wiring Method  4-pole press fit terminal (Input grey L. N. Output grey N. L’)
 IP Rating  IP20
 Installation Size  125.8*32*21.6mm
 Packaging Requirement  Bubble pack, paper flat, outer carton.
  Warranty  5 years
 Life  50000h



Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo



Application

ON OFF Control Function, Suitable For Tri-proof Lamp Installation, corridor, Stairwell, corridor Applications,etc
