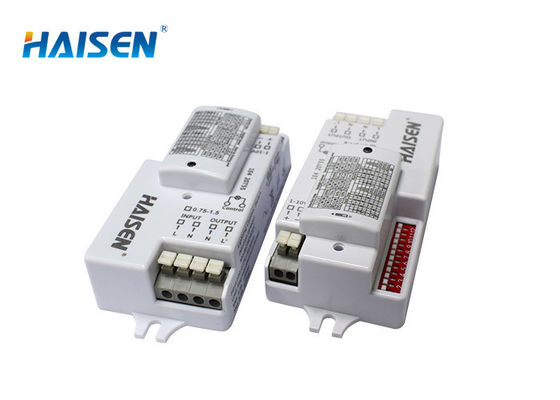

DIP Switch Control 14m Microwave Motion Sensor For Ceiling Fixture

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE RoHS TUV RED
Model Number: HD01V
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negociable
Packaging Details: Bubble pack, paper flat, outer carton
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs

Detail Information

Microwave Frequency: 5.8GHz±75MHz Stand-by Period: 0s/10s/1min/10min/30min/1h/∞
Stand-by Dimming Level: 10%/20%/30%/50% Operating Temperature: -20°C~+55°C
Detection Angle: 30°-150° IP Rating: IP20
High Light:

14m Microwave Motion Sensor


HD01V Microwave Motion Sensor


IP20 Floodight Motion Sensor

Product Description

DIP Switch Control 14m Microwave Motion Sensor For Ceiling Fixture


High Frequency 5.8GHz±75MHz For Ceiling Fixture 220-240 VAC Operated



  • Daylight Sensor, stand-by period and stand-by dimming level.
  • Compact design, suitable for lamp internal installation.
  • DIP switch settiong control.


Input Voltage Range 220~240 VAC 50/60Hz
Sensor Parameters Hold time 5s/30s/1min/5min/10min/20min/30min
Detection Area 10%/50%/75%/100%
Daylight Sensor 2Lux/10Lux/50Lux/Disable
Mounting Height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Wireless Parameters Operating Frequency 5.8 GHz ±75 MHz
Function 0N/0FF+dimming function
Operating Environment Operating Temperature -20°C~+55°C
Safety & EMC Certificate Requirement CE, ROHS, TUV, RED
Others Warranty 5 years
Installation Installed inside lamps
IP Rating IP20
Packaging Requirement Bubble pack, paper flat, outer carton.
Life 50000h


Wiring diagram




Detection coverage


DIP switch setting
