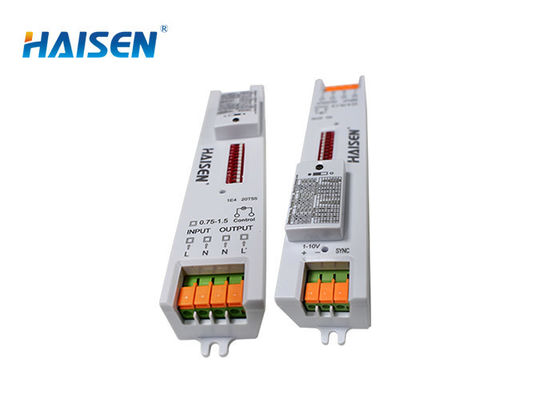

Dimmable 120VAC 277VAC Microwave Movement Detector IP20 Rating
| Place of Origin | China |
|---|---|
| Brand Name | HAISEN |
| Certification | UL RoHS FCC |
| Model Number | HD401V |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | Bubble page, paper flat, outer carton |
| Delivery Time | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100,000pcs per month |
Product Details
| Detection Area | 10%/50%/75%/100% | Daylight Threshold | 2Lux/10Lux/50Lux/Disable |
|---|---|---|---|
| Microwave Frequency | 5.8GHz±75MHz | Microwave Power | <0.3mW |
| Detection Angle | 30°-150° | IP Rating | IP20 |
| High Light | 277VAC Microwave Movement Detector,IP20 Microwave Movement Detector,HD401V Daylight Motion Sensor |
||
Product Description
Dimmable 120VAC 277VAC Microwave Movement Detector IP20 Rating
Dimmable 120-277VAC 0preated Daylight Microwave Movement Sensor
Description:
- Compact design makes it suitable to fix within most lamps.
- Detection area, stand-by peroid, stand-by dimming level and daylight threshold can be precisely set via DIP switch.
- Easy installation, workable for tri-proof light.
- Wide detection area, range up to 14m in diameter.
- Offer on off and dimming function.
Specification:
| Input | Voltage Range | 120~277 VAC 50/60Hz |
| Sensor Parameters | Daylight Sensor | 2Lux/10Lux/50Lux/Disable |
| Detection Area | 10%/50%/75%/100% | |
| Stand-by period | 0s/10s/1min/10min/30min/1h/∞ | |
| Stand-by dimming level | 10%/20%/30%/50% | |
| Mounting Height | Max.6m(ceiling mounted) Max.3m(wall mounted) | |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) | |
| Hold time | 5s/30s/1min/5min/10min/20min/30min | |
| Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
| Function | 0N/0FF+dimming function | |
| Operating Environment | Operating Temperature | -20°C~+55°C |
| Safety & EMC | Approval | UL, RoHS, FCC |
| Others | Installation | Installed inside lamps |
| Packaging Requirement | Bubble pack, paper flat, outer carton. | |
| IP rating | IP20 | |
| Warranty | 5 years | |
| Life | 50000h |
Wiring diagram
Mechanical structure(mm)
DIP switch setting
Detection coverage
Function demo
Apllication
