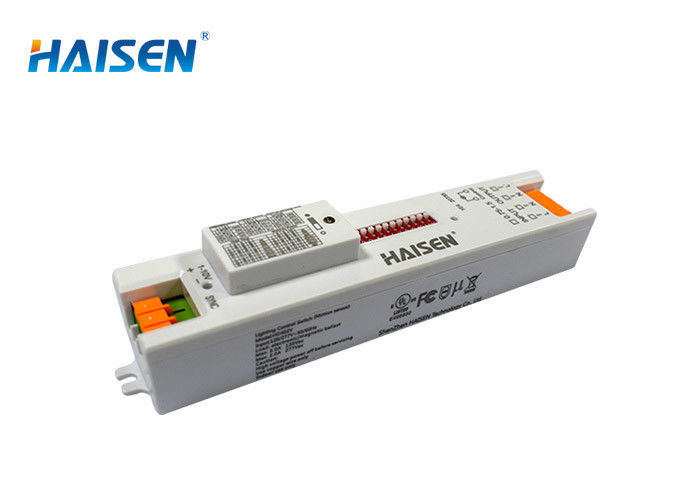

Stand By Power 1W Microwave Motion Sensor Dimmable For Tri Proof Light

Place of Origin China
Brand Name HAISEN
Certification UL RoHS FCC
Model Number HD402V
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month
Product Details
Operating Voltage 120~277 VAC 50/60Hz Approval UL RoHS FCC
Operating Temperature -20°C~+55°C Detection Area 10%/50%/75%/100%
IP Rating IP 20 Warranty 5 Years
High Light

1W Microwave Motion Sensor

,

FCC Microwave Motion Sensor

,

FCC Dimmable Motion Sensor

Leave a Message
Product Description

Stand By Power 1W Microwave Motion Sensor Dimmable For Tri Proof Light



Dimmable Motion Sensor For Tri-proof Light Car Parking Sensor



Features:

  • Sensor data can be simply set via DIP switch.
  • High frequency 5.8GHz±75MHz.
  • On/off function and dimming function for tri-proof light.
  • 4-pole press-in terminal (L,N,N,L′),easy assembly.
  • Have paseed UL, RoHS and FCC certificate.
  • Dimmable sensor for warehouse light and car parking light ect.

Detailed Product Description

Operating voltage 120~277 VAC 50/60Hz
Microwave frequency 5.8GHz±75MHz
Stand-by power <1W
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/5min/10min/20min/30min
Stand-by period 0s/10s/1min/10min/30min/1h/∞
Daylight threshold 2Lux/10Lux/50Lux/Disable
Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Microwave power <0.3mW
Stand-by dimming level 10%/20%/30%/50%
Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Operating temperature -20°C~+55°C
Detection angle 30°-150°
IP rating IP20
Insallation Installed inside lamps
Package Requirement Bubble pack, paper flat, outer carton.
Guarantee 5 years



Wiring diagram



Mechanical structure(mm)



DIP switch setting



Detection coverage



Function demo
