Power 0.3mW Microwave Motion Sensor DIP Switch Setting Control

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD402V 1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble page, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Operating Voltage 120~277VAC 50/60Hz Detection Area 10%/50%/75%/100%
Microwave Power <0.3mW Detection Angle 30°-150°
IP Rating IP20 Warranty 5 Years
High Light

0.3mW Microwave Motion Sensor

,

277VAC Microwave Motion Sensor

,

IP20 Microwave Radar Motion Sensor

Leave a Message
Product Description

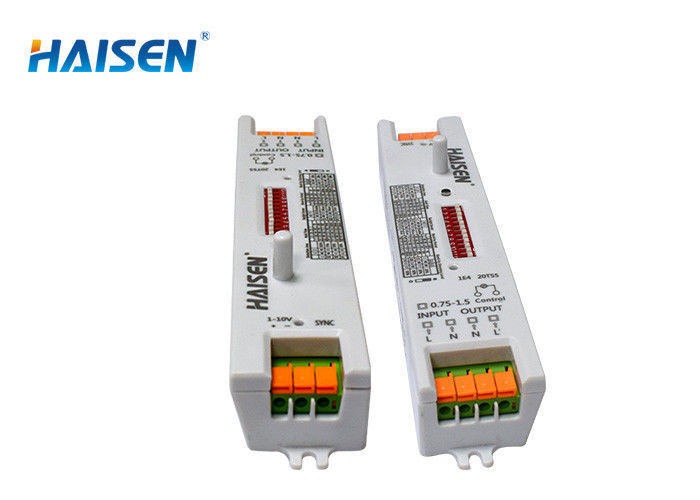

Power 0.3mW Microwave Motion Sensor DIP Switch Setting Control



DIP Switch Setting Control 1-10V Dimmable Microwave Movement Sensor IP 20

Feature:

  • SYNC function: all lights connected to this sensor interface can be controlled synchronously,Load 400W LED light.
  • 1-10V dimmable driver and on/off function.
  • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
  • High frequency 5.8GHz.

Speicification:

Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Microwave frequency 5.8GHz±75MHz
Operating voltage 120~277VAC 50/60Hz
Stand-by power <1W
Microwave power <0.3mW
Hold time 5s/30s/1min/5min/10min/20min/30min
Stand-by period 0s/10s/1min/10min/30min/1h/∞
Stand-by dimming level 10%/20%/30%/50%
Daylight threshold 2Lux/10Lux/50Lux/Disable
Detection area 10%/50%/75%/100%
Approval CE RoHS
Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Detection angle 30°-150°
Life time 50,000 hours
package requirement Bubble pack, paper flat, outer carton
Operating temperature -20°C~+55°C
Installation Installed inside lamps


Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo
