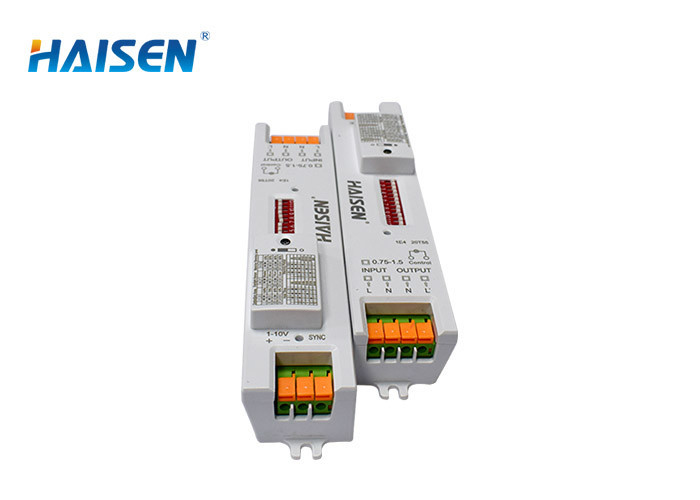

5.8GHz High Frequency Motion Sensor Dimming DIP Switch Control

Place of Origin China
Brand Name HAISEN
Certification CE TUV RED RoHS
Model Number HD02V
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Product Name Microwave Motion Sensor Operating Voltage 220~240 VAC 50/60Hz
Stand-by Power ≤1W Detection Angle 30°-150°
Operating Temperature -20°C~+55°C Warranty 5 Years
High Light

5.8GHz High Frequency Motion Sensor

,

IP20 High Frequency Motion Sensor

,

IP20 Microwave Presence Detector

Leave a Message
Product Description

5.8GHz High Frequency Motion Sensor Dimming DIP Switch Control



High Frequency 5.8GHz Dimming Function DIP Switch Control Sensor IP 20



Features:

  • Unique design ,suitable for 3-6 m Mounting height application, and long detection range 14m for ceiling mounted, 10m for wall mounted.
  • 1-10V dimmable driver and on/off function.
  • Load 400W LED light, up to 850W lamps can be connected in series. SYNC function: all lights connected to this sensor interface can be controlled synchronously.
  • IP 20 and 5 years warranty.

Product Description

Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Stand-by power ≤1W
Operating voltage 220~240 VAC 50/60Hz
Switching capacity Max.400W(Control gear) Max.800W(Incandescent lamp)
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/5min/10min/20min/30min
Stand-by period 0s/10s/1min/10min/30min/1h/∞
Stand-by dimming level 10%/20%/30%/50%
Daylight threshold 2Lux/10Lux/50Lux/Disable
Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm2 cable
Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Detection angle 30°-150°
Operating temperature -20°C~+55°C
IP rating IP20
Life time 50,000 hours
Approval CE RoHS RED TUV
package requirement Bubble pack, paper flat, outer carton


Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo

Application
