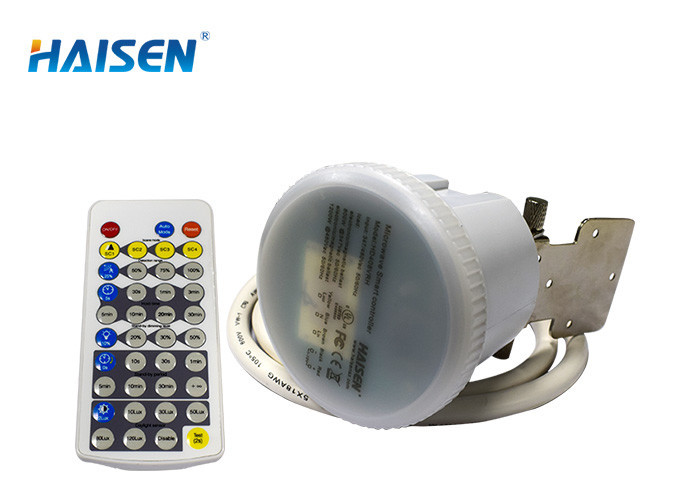

FCC UL Dimming Microwave Presence Detector For Tri Proof Light

Place of Origin China
Brand Name HAISEN
Certification FCC UL
Model Number HD408VRH
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Microwave Frequency 5.8GHz ± 75MHz Mounting Height Max.15m/49.2ft
Detection Range Max.ø16m/52.48ft Apperance Color White Or Black
Operating Voltage 347-480VAC,50/60Hz Lifetime 50000 Hours
IP Rating IP 20 Application Tri-proof Light/Battenlight/UFO Highbay Light
Detection Distance Diameter 16m/52.48 Max.
High Light

FCC Microwave Presence Detector

,

480VAC Microwave Presence Detector

,

FCC Microwave Occupancy Sensors

Leave a Message
Product Description

FCC UL Dimming Microwave Presence Detector For Tri Proof Light

Microwave motion sensor with dimming function for trip-proof light or UFO highbay(low bay)light

Features:

  • 5.8GHz Micorwave Motion Sensor with remote control.
  • Dimming function microwave movement motion sensor.
  • Operating voltage:347-480VAC 50Hz/60Hz.
  • Automatically detect the daylight and remain OFF even detect any movement when the natural light is sufficient.
  • Mounting height could be 15m/49.2ft and detection diameter could be 16m/52.48ft.
  • Detection area,time delay,stand-by dimming level,stand-by period and daylight threshold can be precisely set by remote controller.

Specifications

Operating voltage347-480VAC,50Hz/60Hz
Switching capacityMax.2.3A@347Vac 50/60Hz;Max.2.5A@480Vac 50/60Hz
Stand-by power≤1W
Detection area25%/50%/75%/100%
Hold time5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level10%/20%/30%/50%
Microwave frequency5.8GHz±75MHz
Microwave power<0.3mW
Mounting heightMax.15m/49.2ft
Detection rangeMax.Ø16m/52.48ft
Control line

Black L in;White N;Red L out;Gray -;Purple +

Operating voltage-35℃-+55℃
IP ratingIP 65
Detection angle30°-150°
CertificateRoHS UL FCC
Safety standardEN61347-1 EN61347-2-13 EN60598-1





    ON/OFF            Daylight sensor        Detection area           Hold time          Warranty 5 years       Remote control

Stand-by period   Stand-by dimming    10-15m Highbay
                                     level
Dimensions:
There are four versions of sensors for different lamps.

Wiring Diagram:
American standard:Black L,White N,Red L',Gray 1-10V-,Purple 1-10V+.

Detection coverage:
Max. detection range will be 16m for ceiling mounted.

Application:
The motion sensor can penetrate most of objects such as glass, wood, plastic but metal. It won’t be affected by ambient temperature, dust and widely applied in office, corridor, fire exit, warehouse, basement and other indoor lighting places for saving energy.
