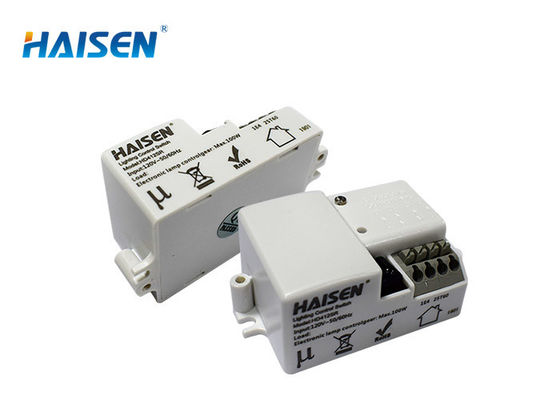

Remote Control Small 120VAC Microwave Light Sensor Planar Antenna Design

Place of Origin China
Brand Name HAISEN
Certification RoHS CE
Model Number HD412SR
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Microwave Frequency 5.8GHz ± 75MHz Appearance Design Planar Antenna Design
Mounting Height Max.2-5m/6.56-16.40ft Detection Range Max.ø12m/39.37ft
Apperance Color White Operating Voltage 120 VAC 50/60Hz
Lifetime 50000 Hours IP Rating IP20
Certificate CE RoHS
High Light

120VAC Microwave Light Sensor

,

IP20 Microwave Light Sensor

,

IP20 Small Motion Sensor

Leave a Message
Product Description

Remote Control Small Microwave Light Sensor Planar Antenna Design



Smallest size of microwave motion sensor HD412SR with remote control to set all paramaters aiming at saving energy and sustainability



Features:

  • 5.8GHz Micorwave Motion Sensor with ON/OFF function.
  • Super compact design with size of 60.6*35.5*25.1mm to be easily installed inside of kinds of LED light.
  • Automatically detect the daylight and remain OFF even detect any movement when the natural light is sufficient.
  • Automatically light off after the last detection and hold time to save energy.
  • Particularly good value for money which would cost down the whole project.
  • Take different options by setting the detection area, hold time and daylight threshold set with a remote control.

Specifications:

Input Operating Voltage 120VAC 50/60Hz
Switching capacity Max.100W
Stand-by Power ≤0.7W







Parameters

Hold Time 5s/60s/5min/10min
Detection area 50% / 100%
Daylight Threshold 2Lux/10Lux/50Lux/Disable
Mounting Height Max.4m(ceiling mounted); Max.3m(wall mounted)
Detection Range Max.12m(ceiling mounted);Max.10m(wall mounted)
Detection angle 30°- 150°

Wireless

Parameters

Operating Frequency 5.8 GHz ±75 MHz
Switch Control 0N/0FF

Operating

Environment

Operating Temperature -25℃~+60℃
Certificate Certificate Requirement CE / RoHs





Others

IP Rating IP20 (Built-in)
Installation Size 60.6 X 35.5 X 25.1mm
Packaging Requirement Bubble bag +Outer Carton(K=A)
Life 50000h




    ON/OFF            Daylight sensor        Detection area           Hold time          Warranty 5 years



Dimensions:

The smallest microwave sensor in the market with super compact design. With Size of 60.6*35.5*25.1mm, it could be easily installed inside of most kinds of LED light like panel light, ceiling light, batten light and the like. With a very small IR Remote receiver, it could be set with different options by all of our remote control.



Wiring Diagram:

4-pole press-in terminal (L, N,N,L′),easy assembly.



Detection coverage:

Max. detection range will be 12m for ceiling mounted; Max. Detection range will be 10m for wall mounted.
