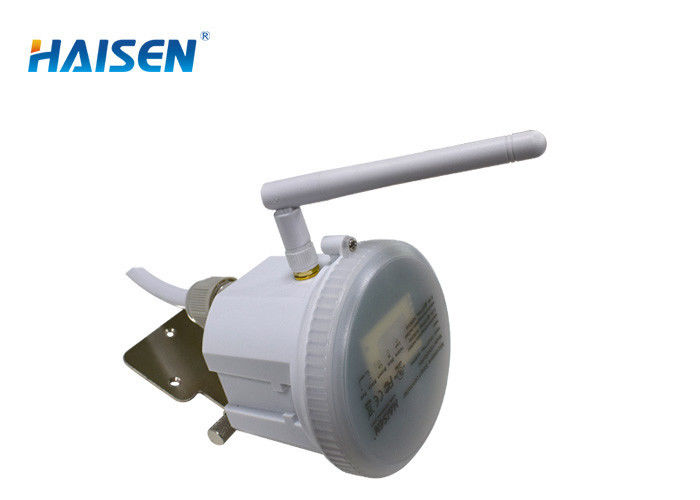

High Frequency 5.8GHz BLE Motion Sensor Microwave Movement Detector

Place of Origin China
Brand Name HAISEN
Certification FCC UL TUV SAA RED CE RoHS
Model Number HD409VRH
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Apperance Color White Or Black Mounting Height Max.15m/49.2ft
Microwave Frequency 5.8GHz ± 75MHz Detection Range Max.ø16m/52.48ft
Operating Voltage American Version:120-277VAC,Europe Version:12-240VAC Lifetime 50000 Hours
IP Rating IP65 Application Tri-proof Light/Battenlight/UFO Highbay Light
Detection Distance Diameter 16m/52.48 Max. Function Bluetooth Networking And Can Be Control By HAISEN APP
High Light

5.8GHz BLE Motion Sensor

,

5.8GHz Bluetooth Wireless Motion Sensor

,

SAA BLE Motion Sensor

Leave a Message
Product Description

High Frequency 5.8GHz BLE Motion Sensor Microwave Movement Detector



Outside of light fixtures bluetooth networking HAISEN APP control microwave motion sensor



Features:

  • Control line:American version:black L in;white N;red L out;gray1-10v-;purple1-10v+.

​        Europe version:brown L in;blue N;yellow L out;black1-10v-;red1-10v+.

  • Dimming function microwave movement motion sensor.
  • Switching capacity:max.2.3A@347Vac 50/60Hz;max.2.5A@480Vac 50/60Hz.
  • Automatically detect the daylight and remain OFF even detect any movement when the natural light is sufficient.
  • Mounting height could be 15m/49.2ft and detection diameter could be 16m/52.48ft.
  • Detection area,time delay,stand-by dimming level,stand-by period and daylight threshold can be precisely set by remote controller.

Specifications

Operating temperature American version -35℃-+60℃
Europe version -35℃-+55℃
Operating voltage American version 120-277VAC,50Hz/60Hz
Europe version 120-240VAC,50Hz/60Hz
Switching capacity American version 3.0A@120Vac,50/60Hz,2.0A@277Vac,50/60Hz
Europe version Incandescent lamp:Max.800W@120-220Vac,Max.1000W@220-220Vac; Control gear:Max.400W@220-240Vac,Max.800W@220-240Vac
Stand-by power ≤1.5w
Detection area 25%/50%/75%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Control line American version black L in;white N;red L out;gray1-10v-;purple1-10v+
Europe version brown L in;blue N;yellow L out;black1-10v-;red1-10v+
Mounting height Max.15m/49.2ft
Detection range Max.Ø16m/52.48ft
IP rating IP 65
Detection angle 30°-150°
Safety standard EN61347-1 EN61347-2-13 EN60598-1


    ON/OFF            Daylight sensor        Detection area           Hold time          Warranty 5 years       Remote control



Stand-by period   Stand-by dimming    10-15m Highbay       APP Control             Bluetooth

                                     level                                                                                  networking



Dimensions:

There are four versions of sensors for different lamps.

Version A:



Version B:



Version C:



Version D:





Installation method

Clip to the edge of the lamp



Ceiling mounted



Wall-mounted installation



Make a small hole in the side of the lamp and reveal the sensor



Wiring Diagram:

American standard:Black L,White N,Red L',Gray 1-10V-,Purple 1-10V+.

Europe standard:Brown L in;Blue N;Yellow L out;Black1-10v-;Red1-10v+



Detection coverage:

Max. detection range will be 16m/52.48ft for ceiling mounted.
