220VAC 240VAC External Microwave Motion Sensor For Triproof Lights

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE TUV RED
Model Number: HD02S-6 1
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications Product Description Request A Quote
Operating Voltage: 220~240 VAC 50/60Hz
Switching Capacity: Max.400W(Control Gear) Max.800W(Incandescent Lamp)
Stand-by Power: ≤0.5W
Microwave Frequency: 5.8GHz±75MHz
Microwave Power: <0.3mW
Mounting Height: Max.4.5m(ceiling Mounted)
Detection Range: Max.ø12m(ceiling Mounted)
Detection Angle: 30°-150°
High Light:

240VAC External Microwave Motion Sensor


220VAC External Microwave Sensor


IP20 External Microwave Motion Sensor

Product Description

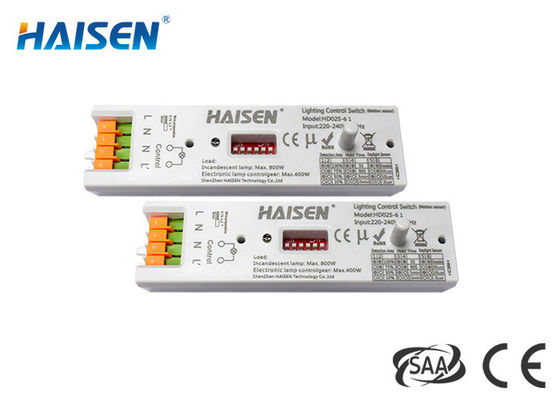

220VAC 240VAC External Microwave Motion Sensor For Triproof Lights


TUV CE Approved Slim Design 220-240VAC ON/OFF Microwave Sensor For Triproof Light



1. Slim design size of 125.8*32*21.6mm
2. Unique design with loop in and loop out .
3. Daylight sensor with min 2 lux optional
4. Zero-crossing point operation helps protect the sensor against in-rush current.
5. 5.8GHz high frequency microwave
6. 4-pole press-in terminal (L, N,N,L′),easy assembly.
7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. HD02S-6 1 is an innovative motion sensor, switch on the light on detection of movement, and switch Off a hold time when there is no motion detected.



On Off Switch Sensor


Detailed Product Description

 Input  Rated Voltage  220-240V AC 50Hz/60Hz
 Direct Voltage  N/A
 Stand-by Power  ≤0.5W
 Output  Working Model  ON/OFF
 Power of Load  Inductive (400W) ; Resistive (800W)
 Current of Load  N/A
 Surge Current of Load
 Connection  1-10Vdimmable  N/A
 Synchronous control  N/A
 High low-level  N/A
 PWM Control  N/A
 Type of wiring  N/A
 Sensor Parameters  Operating Frequency  5.8 GHz ±75 MHz
 Transmitting power  0.5mW Max.
 Hold time  5S/90S/5min/15min
 Dim down  N/A
 Stand-by  N/A
 Sensitivity  10%/50%/75%/100%
 Daylight Sensor  2Lux/10Lux/50Lux/Disable
 Daylight on/off  N/A
 Detecting Radius  N/A
 Mounting Height  Suggested 4.5M Max, ceiling mounting
 Detecting Angle  N/A
 Operating  Operating  Temperature, -20℃…+55℃
 Environment  Storage  Temperature -25℃…+80℃
 Certificate  Standards  Safety standards  N/A
 EMC standards  N/A
 Environmental protection  Compliant to RoHS
 Certificates  Compliant to CE RED TUV
 Others  Wiring  Press Terminal, wire diameter:0.75-1.5mm2
 IP Rating  IP20
 Installation  Interior installed
 Mounting size  125.8*32*21.6mm
 Package  Bubble pack, paper flat, outer carton.
 Net Weight  N/A
 Lifespan  50000h @ Ta Full load
 Remark:1. “N/A”means not available 2. Each data is tested under certain condition


Wiring diagram


Wiring diagram


Mechanical structure(mm)


DIP Switch Setting


Detection coverage
