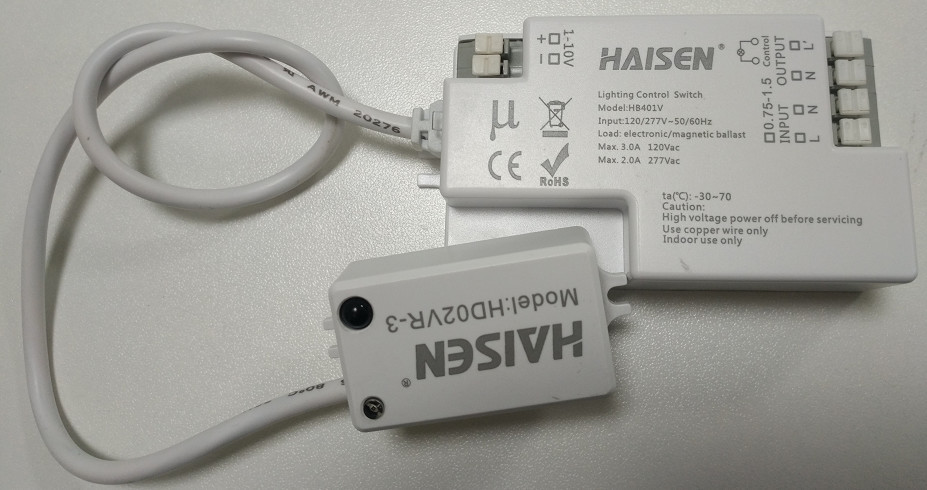

5.8GHz Microwave Motion Detector Sensor Dimmable For Indoor Stadium

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: RoHS CE
Model Number: HB401VM
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs Per Month
Specifications Product Description Request A Quote
Function: Master-slave Grouping Function
Switching Capacity: Max.3.0A@120Vac,Max.2.0A@277Vac
Mounting Height: Max.12m/39.36ft(ceiling Mounted)
Detection Distance: Diameter 14m/45.92ft Max.
Operating Voltage: 120~277VAC 50/60Hz
Operating Temperature: -30°C~+70°C
Application: Parking Lot;school;warehouse;indoor Stadium And So On
Warranty: 5 Years
High Light:

5.8GHz Motion Detector Sensor


14m Motion Detector Sensor


5.8GHz Bluetooth PIR Sensor

Product Description

5.8GHz Microwave Motion Detector Sensor Dimmable For Indoor Stadium


Bluetooth networking microwave motion sensor 120-277VAC master slave control parameter set by mobile APP



  • 5.8GHz microwave motion sensor with dimmable function
  • The parameters would set by remote control or mobile APP
  • Multiple sensors can be ued simultaneously through wireless blutooth networking
  • Mounting height would be 15m/49.2ft and detection range up to 16m/52.48ft diameter
  • Supporting different installation and applications, for surface mounting, traditional LED high bay with aluminium reflector or linear/triproof high bay
  • Bluetooth networking HAISEN App control
  • Remote control and 5 years warranty


Function Bluetooth networking,master-slave grouping function
Operating voltage 120-277VAC 50/60HZ
Switching capacity Max.3.0A@120Vac,50/60HZ;Max.2.0A@277Vac,50/60HZ
Stand-by power ≤1.5W



ON/OFF/1-10V Dimming;Bluetooth;Mobile APP setting;Remote control(except for the two slaves,they were set up using Bliutooth and a mobile APP)
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 25%/50%/75%/100%
Hold time 5s/10s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min
Stand-by dimming level 10%/20%/30%/50%
Mounting height Max.12m (39.36ft )
Detection range Max.ø14m ( 45.93ft )
Detection angle 30°-150°
Motion detection 0.5~1.5m/s
Operating temperature -30°C~+70°C
Control line Black L in;White N;Red L out;Gray -;Purple +(HB401S:Black L in;White N;Red L out)
IP rating IP 20
Warranty 5 years



         ON/OFF Control                                                 Detection area

 Automatic switch function                                   Smart detection of moving objects,

 people come,light,ON,people                               such as people moving around.

 go,lights OFF.


    Daylight threshold                                           Hold time

Sensors automatically identify                                Delay time refers to the time after

the environment for daylight                                  the person leaves,the light brightness

detection.                                                               keeps 100% when the hold time.


      Stand-by period                                   Stand-by dimming level

Stand-by period is the delay time                      Stand-by dimming level is the brightness

value of the automatic modulation                    of LED light when stand-by period.

preset of the sensor after the

delay time.


        Remote control                                              warranty

remote control parameter setting                                      5 year of warranty


     Mobile APP setting                                   Bluetooth networking

Mobile APP parameter setting                                Bluetooth networking group function


      10-15M Highbay                                    Master-slave control


Mechanical structure:


Wiring diagram:







Detection pattern:


Master-slave grouping function:

1.Grouping the master sensor HB401VM(master) with slave sensor HB401V(slave)/HB401S(slave) with APP setting.

2.When HB401VM detects movement from any directions,it gives RF singals to HB401V in the same group so lamps switch on at the same time.


All the settings can be finished on the APP.

The master sensor HB401VM detects whereas HB401V/HB401S only receives signals.


Master-slave control:


with sufficient ambient brightness,even motion get detected,lights keep off.


with insufficient ambient brightness,all lamps will switch on simultaneously if any movement get detected by any master sensor from any direction.


All lamps dim to preset stand-by dimming level if no movement triggers the sensor after holdtime.


All lamps switch off if no movement triggers after stand-by period.

Flush mounted version:

4 styles of installation



Function Demo-Dimming control:


                       With sufficient daylight,even                                               With insufficient daylight,

                  when motion detected,                                                       light ON.

                  light remains OFF.


                  After the last detection,the light                                             After the stand-by period,

                will be dimmed down to the                                                   light OFF.

               stand-by dimming level

               (10%,20%,30% or 50%)after




Microwave sensor coverage wide distance no dead angle,strong anti-interference ability,high sensitivity,can penetrate non-metalic objects:glass,thin wood,according to different power,different thickness,it can penetrate walls and affected by the environment,temperature,dust and other environmental effects,suitable for use in different applications.
