Waterproof IP65 PIR Daylight Sensor ON OFF Control CE RoHs Certificated

Place of Origin CHINA
Brand Name HAISEN
Certification CE RoHs
Model Number HS05
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Individual white box, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Output 0V/10V ON/OFF Operating Current 30mA±5%
Operating Voltage 10-15VDC Control Way ON/OFF Control
IP Rating IP65 Certificate CE RoHs
High Light

IP65 PIR Daylight Sensor

,

15VDC PIR Daylight Sensor

,

IP65 Waterproof Proximity Sensor

Leave a Message
Product Description

Waterproof IP65 PIR Daylight Sensor ON OFF Control CE RoHs Certificated

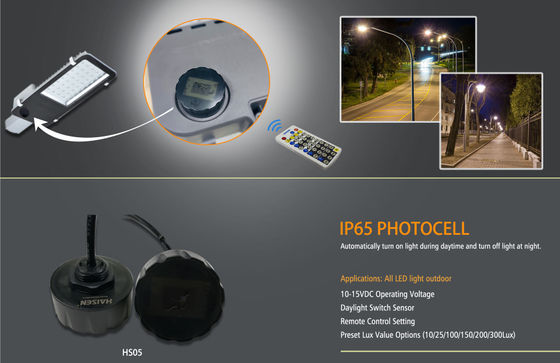

IP65 Waterproof 10-15VDC Photocell 10~300Lux off Daylight Switch Sensor Street Light

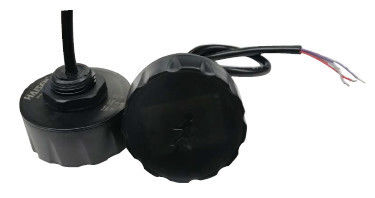

HS05 IP65 Waterproof DC Photocell with Dual PD to Differentiate Natural Light and LED light to Turn on/off the Light without any Height Limitation for Outdoor Application Like UFO/Shoebox/Streetlight.



Features:

1. IP65 Rating for outdoor usaging like street light.

2. No height limitation for all environment outdoor.

3. Dual PD to differentiate natural light and artificial light.

4. Preset Lux on/off value to control the light on/off automatically when exceed or lower the value.

5. ON/OFF switch sensor automatically and dimming setting by remote control manually.

6. With control line as: Red-12V / Grey-GND / Purple-DIM to provide easier installation instruction for end user.



Detailed Product Descriptions

Operating voltage

10-15VDC

Output

OV 10V ON/OFF

Stand-by power

<30mA

Preset Lux on Value

10Lux/25Lux/50Lux/100Lux/150Lux/200Lux/300Lux

Preset Lux off Value

50Lux/75Lux/100Lux/200Lux/300Lux/400Lux/500Lux

Control line

Red: 12V; Grey: GND; Purple: DIM

Operating temperature

-20°C~+60°C

IP rating

IP65

Life time

50,000 hours

Warranty

5 years



Wiring diagram

With three control line of Red: 12V; Grey: GND; Purple: DIM to be easily connected with LED driver for end user.

Removable module and cover for flexible options of the function according to different installation site and requirements.



The bottom part will be always on the lighting fixtures; if the function is needed, the
module will be placed inside; if no function needed, the module will be removed. It
doesn't hurt the looking of the whole pack.



Dusk/Dawn sensor:
Dual-PD technology brings a fully automatic dusk/dawn sensor which can tell the difference between
natural light and LED light, to ensure the light will be off when needed.



With Daylight priority function, HS05 is able to differentiate artificial light brightness from natural light, and automatically turn off light when ambient brightness exceeds preset lux level.



PLUG & PLAY DESIGN

The cover with humanoid icon indiacates there is built-in microwave module with sensor function. The cover without hamuanoid icon indiacates there is no module as well as sensor function.



Application - Lux on/off



When ambient brightness is               when is lower, than pre-set
higher than preset lux level,               lux level light will turn on
light will automatically turn off.           100%.



Installation Instruction

With an extended support, connect the wire to LED driver directly;

Open a small hole on the Lighting board to delivery the wire to LED driver inside of the fittings.
