4 Ports Photocell Daylight Sensor Unit 220VAC 240VAC Voltage

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HS03
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 3 days for sample order, 3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Voltage 220-240V AC Warranty 5 Years
Function Photocell / Daylight Switch Control DIP Switches
Switching Capacity 230V,Max.400W(Control Gear) Max.800W(Incandescent Lamp),10A Stand-by Power <0.5W
Interfaces 4-pole Pluggable Clamp Terminal (L,N,N,L’) For 0.75~1.5 Mm 2 Cable Operation Temperature -25°C~60°C
High Light

4 Ports Photocell Daylight Sensor

,

220VAC Photocell Daylight Sensor

,

240VAC Photocell Sensor Unit

Leave a Message
Product Description

4 Ports Photocell Daylight Sensor Unit 220VAC 240VAC Voltage



4 Ports Photocell Sensor Unit 25 - 400 Preset Lux Off Value 220 - 240V AC



HS03 is a 220-240VAC Input Daylight Switch Sensor Controlled by Ambient Brightness Lux Value and Preset Lux ON/OFF Value with Photocell 5 Year Warranty and Lifespan of 50,000 Hours



Product Description

Operating voltage 220-240V AC
Switching capacity 230V,Max,400W(Control gear) Max.800W(Incandescent lamp),10A
Stand-by power ≤0.5W
Lux on preset daylight threshold    Disable/200Lux/150Lux/100Lux/50Lux/25Lux/10Lux/5Lux
Lux off preset daylight threshold 400Lux/300Lux/200Lux/100Lux/75Lux/50Lux/25Lux
Interfaces 4-pole pluggable clamp terminal (L,N,N,L’) for 1.5mm2 cable
Mounting height No Height Limitation
Operating temperature -25°C~+60°C
IP rating IP20
Life time 50,000 hours
Warranty 5 years



Wiring diagram

Two ports with "L" "N" to connect with power supply (220-240VAC) and another two ports with  "L'" "N" to connect with LED driver, functioned as a ON/OFF switch.



Mechanical structure & Dimension(mm)

Two Photodiode to detect natural light and artificial light seperately and compare with each other to decide the light turn on/off;

DIP switch with 4 ports for more options about the preset lux on/off value.



DIP Switch Setting

By adjusting DIP switches up and down, customer can get the solutions for different applications. When ambient brightness is higher than preset lux level, light will automatically turn off; when is lower, light will turn on 100%.

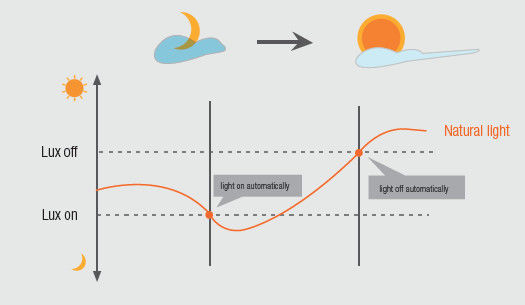

Application Demo-lux on/off



When ambient brightness is higher than preset lux level, light will automatically turn off. When is lower than preset lux on level, light will turn on 100%.



Adopted dual PD technology, HS03 is able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level.
