Dimmable IP20 Photocell Daylight Sensor With Length 1m Cable

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE
Model Number: HS01
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000pcs per month
Specifications Product Description Request A Quote
Specifications
Specifications
Main Voltage: 1-10VDC Dimming
Operation Temperature: -25°C~45°C
Dimming Range: 10%-100% (1-10V)
Current Sink: Max,50mA (Maximum Rating)
IP Rating: IP20
Detection Angle: 120°
High Light:

IP20 Photocell Daylight Sensor

,

50mA Photocell Daylight Sensor

,

IP20 Daylight Switch Sensor

Product Description

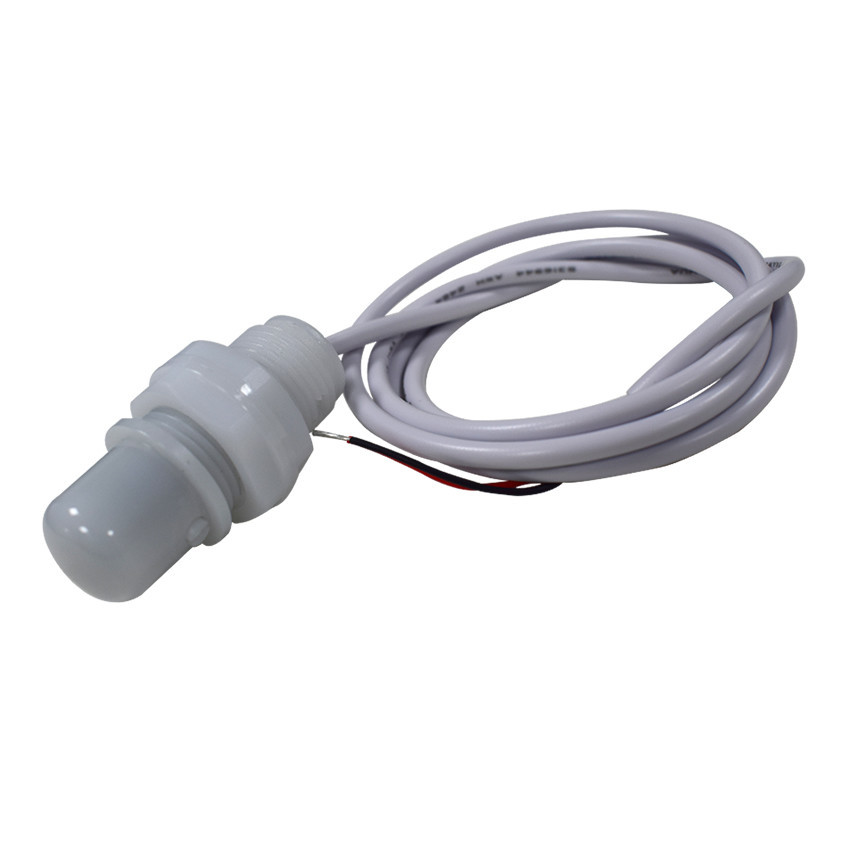

Dimmable IP20 Photocell Daylight Sensor With Length 1m Cable



1-10V DC Dimmable Photocell Sensor Unit Daylight Harvesting With Cable Length 1m



HS01 is a standalone 1-10V dimming daylight sensor to transmit anolog signal of the lux value of natural light to turn on/up the LED light or Dim down/off the LED light with a 1-10V Dimmable interface to balance the environment brightness comfortable or suitable for any special required lux value.

Features:
1. Load 2000W max. wth 50mA dimming current.

2. No height limitation but only affected by natural light.

3. Only two control line (±) to be easily wired with LED driver;

4. Daylight harvesting to balance the LED light to be a comfortable brightness based on the natural light.
5. 1-10V dimming sensor connecting with the DIM± port of LED driver;
6. Setting knob to choose the preset required lux value
7. IP20

Product Description

   Operating voltage    1-10V DC
   Dimming range    10-100%
   Operating temperature    -25°C~+45°C
   Detection angle    120°
   Current sink    Max. rating current is 50mA
   Control line    White -,Red +
   Cable length    1M
   IP rating    IP20



Wiring diagram

Very simple structure with two control line to  connect with LED DIM+ / DIM-

Mechanical structure(mm)
Setting Knob to adjust target lux value
With a installation head nut, easily to be plug and pull;
With a photodiode in front of the sensor, detect the ambient brightness easily.

Application with ON/OFF or Dimming Microwave Motion Sensor

Daylight Harvesting Application Demo
Connected to 1-10V interface, the sensor automatically compares ambient lux to preset lux
value and adjusts artificial lighting to keep lighting balance.

Illumination preset lux value
Preset lux value refers to the illuminanation required by the customer for the installation environment.

Application Demo of HS01 connecting to driver

Connected sensor is always automatically compares ambient lux to preset lux value. With 1-10V dimmable control gear, artificial light dims 10%-100% brightness according to the change of ambient lux level to keep visual comfort.

With enough ambient lux          Switch off light
( ambient lux > preset              manually when needed.
lux value), light dims
10% brightness.

Installation Method
1. Cannot be built-in installation
2. To avoid affection of artificial light, the photocell cannot be installed facing to the LED light source and shall be installed horizontally with the light or higher than the light.


Notes:

1. Please read the instructions carefully before using this product and keep it well for all users to read at any time.
2. The sensor should be installed by qualified electrician and ensure power is off before the installation.
