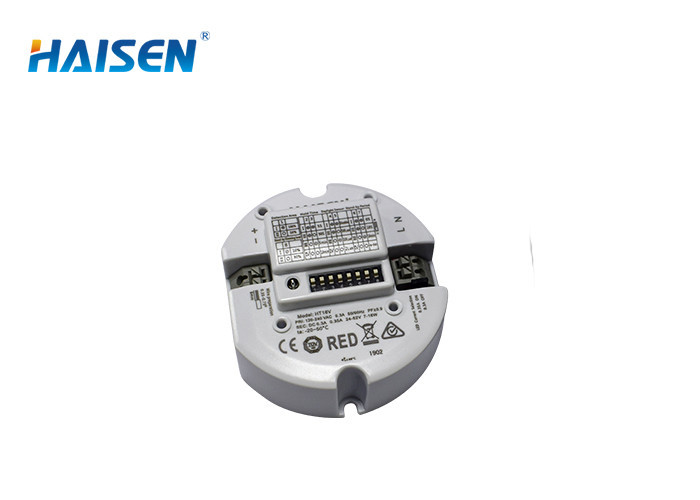

16W Dimmable Bi Level Ceiling Mount Motion Detector Safety Operation

Place of Origin China
Brand Name HAISEN
Certification CE TUV RED SAA CB
Model Number HT16V
Minimum Order Quantity 100PCS
Price USD 5.5-6.3/PCS
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Input Voltage 120~240VAC 50/60Hz Input Current 0.3A Max
Input Power 16W Microwave Frequency 5.8GHz±75MHz
Microwave Power <0.3mW Detection Angle <0.3mW
High Light

interior motion detector

,

led emergency driver

Leave a Message
Product Description

16W Dimmable Bi-Level LED Driver And Sensor Compact Design For Ceiling Light





Features:

  • Super compact design, suitable for ceiling light.
  • Dimmable 1-10V, non-isolated solution.
  • Daylight threshold, Detection Range, Holdtime, Standby dimming level and Standby period.
  • 3-5 years warranty, with 30000-50000 hours lifetime.





Detailed product information:

 Input voltage  120~240VAC 50/60Hz
 Input current  0.3A Max
 Input power  16W
 Detection area  50%/100%
 Hold time  5s/90s/ 5min/10min
 Daylight threshold  2Lux /10Lux /50Lux/Disable
 Stand-by period  0s/10s/10min /+∞
 Stand-by dimming level  10%/30%
 Microwave frequency  5.8GHz±75MHz
 Microwave power  <0.3mW
 Detection angle  30°~150°
 Mounting height  Max.6m(ceiling mounted);Max.3m(wall mounted)
 Detection range  Max.ø14m(ceiling mounted);Max.10m(wall mounted)
 Output LED current  0.3A/0.35A
 Output LED voltage  24V~52V
 Output LED power  7W~16W
 Empty load voltage  ≤63V
 Power factor  ≥0.9
 Efficiency  87% (Max.)
 Operating temperature  -20°C~50°C Tc: 80°C
 Abnormal protection  SCP:Auto recovery,OVP,OCP,OTP
 EMC standard  EN55015
 Safety standard  EN61347-1 EN61347-2-13 EN60598-1
 IP rating  IP20



Size information(based on mm)

DIP Switches

No. 1 - Detection area

No. 2 and 3- Holdtime

No. 4 and 5 - Daylight Threshold

No.6 and 7. - Standby period

No.8 - Standby diming level


Current Selection: Plug-in Pin



Working Cycle:

The light will turn on when people walk into the detection range; after people leave, the light will keep for some time, as we called "Holdtime"; After "Holdtime", the light will give low output and keep for a while, as called "standby dimming" and "Standby Period"; After Standby period, the light will turn off.



Application:

Suitable for ceiling light, good for indoor residential lighting and commercial lighting, for example the intelligent office.
