Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HAISEN |
| Certification: | CE RoHS |
| Model Number: | HT57V-I |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Bubble pack, paper flat, outer carton. |
| Delivery Time: | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs per month |

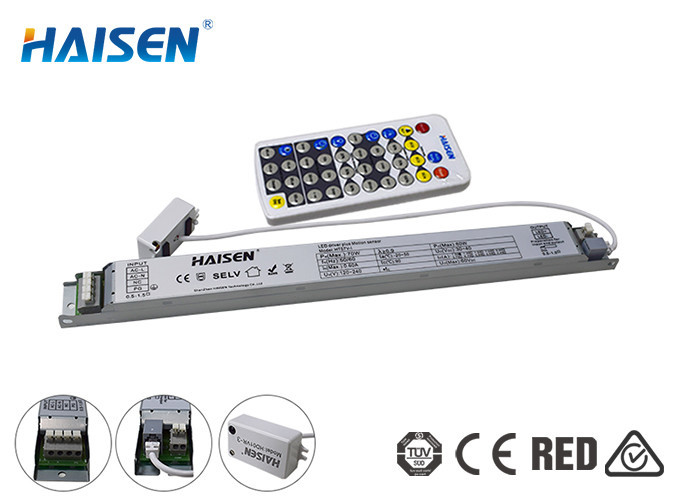

Wide Detection Area DALI Dimmable LED Driver Lighting Occupancy
Remote control 60W Dimmable Motion Sensor Isolated Solution IP 20
Features:
Product Description
| Sensor Parameters | Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ | |
| Stand-by dimming level | 10%/20%/30%/50% | |
| Hold time | 5s/30s/1min/3mib/5min/10min/20min/30min | |
| Detection area | 25%/50%/75%/100% | |
| Power factor | ≥0.9 | |
| Detection angle | 30°-150° | |
| Efficiency | 87% (Max.) | |
| Mounting height | Max.6m/19.68ft | |
| Detection range | Max.ø14m/45.92ft | |
| Empty load voltage | ≤63V DC | |
| Input | Input voltage | 120~277VAC 50/60Hz |
| Input current | 0.60A Max | |
| Input power | Max. 70W | |
| Microwave frequency | 5.8GHz±75MHz | |
| Microwave power | <0.3mW | |
| Output | Output LED power | Max. 60W |
| Output LED current | 1.2A/1.3A/1.4A/1.5A ±5% | |
| Output LED voltage | 30-48VDC | |
| Others | Operating temperature | -20°C~50°C Tc: 80°C |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP | |
| EMC standard | EN55015 | |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 | |
| Approval | CE RoHS | |
| IP rating | IP20 | |
| Life time | 50000h | |
| Warranty | 3 years | |
| Installation | Installed inside lamps | |
| package requirement | Bubble pack, paper flat, outer carton | |
| Operating temperature | -20°C~50°C Tc: 80°C | |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP | |
| EMC standard | EN55015 |
Wiring diagram
Mechanical structure(mm)
Detection coverage
Demo
Application
