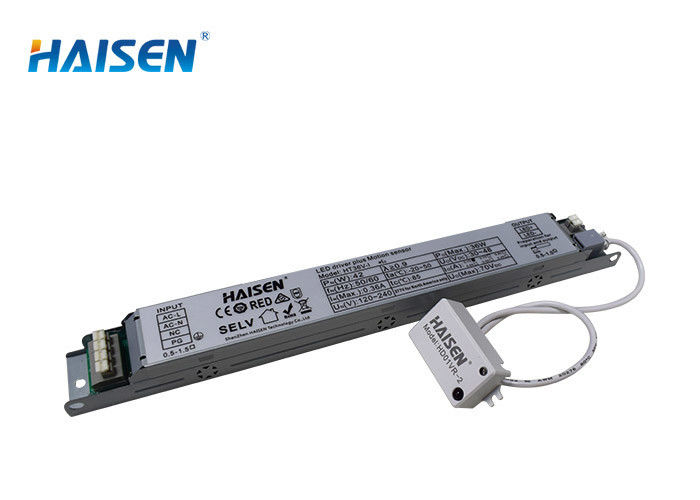

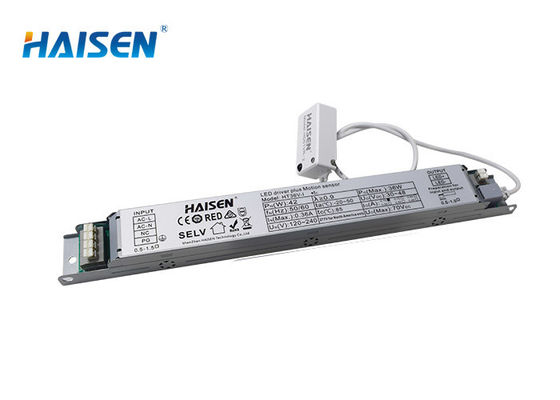

30V 48VDC Output Interior Motion Detector For Linear Batten Light

Place of Origin China
Brand Name HAISEN
Certification CE TUV RED
Model Number HT36V-I
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
LED Driver 23-36W Output Mounting Height Max.6m/19.68ft
Function Dimmable LED Driver & Sensor Input Voltage 120~240VAC 50/60Hz
Life Time 50000h Input Power Max. 42W
Output LED Voltage 30V~48V DC Output LED Current (Max) 0.75A±5%
High Light

48VDC Interior Motion Detector

,

30V DC Interior Motion Detector

,

48VDC Linear Motion Sensor

Leave a Message
Product Description

30V 48VDC Output Interior Motion Detector For Linear Batten Light



36W LED Driver Sensor 1 - 10V Dimming Detector For Linear / Batten Light



HT36V-I is Isolated Solution LED Driver & Microwave Sensor Integrated Product with 23-36W Output Power and 30-54V Output Voltage with 1-10V Dimming Detector Suitable for Linear/Batten Light.



Features:

1. Operating Voltage of 120-240VAC

2. Output Voltage 30-54V; Output Current 0.75A±5% Max.

3. Max. output Power 36W and input power 42W Max.

4. Isolated LED Driver Solution

5. Detached design suitable for batten light and tri-proof light.

6. Remote control setting parameters

7. Detection Range*Height: 14m x 6m

8. Efficiency of 87%

9. Empty Load Voltage of 70V

10. IP20, 3 years warranty


Specification

Output Output LED power 23-36W
Output LED current Max. 0.75A±5%
Output LED voltage 30-48VDC
Sensor Parameters Hold time 5s/30s/1min/3mib/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Power factor ≥0.9
Efficiency 87% (Max.)
Detection area 25%/50%/75%/100%
Detection angle 30°-150°
Mounting height Max.6m/19.68ft
Detection range Max.ø14m/45.92ft
Empty load voltage ≤70V DC
Input Input voltage 120~240VAC 50/60Hz
Input current 0.36-0.16A Max
Input power Max. 42W
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Others Operating temperature Ta:- 20°C~50°C Tc: 85°C
Abnormal protection SCP:Auto recovery,OVP,OCP,OTP
EMC standard EN55015
Safety standard EN61347-1 EN61347-2-13 EN60598-1
IP rating IP20
Life time 50,000 hours
Installation Installed inside lamps
Package requirement Bubble pack, paper flat, outer carton




Wiring diagram




Mechanical structure(mm)

- With detached microwave module, it could be installed inside of the lighting fixture;

- With IR Receiver, it could be set by remote control

- With a pluggable interface to connect the driver and sensor easily




Dimension(Unit: mm)




Detection coverage

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6m



Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.
The daylight threshold is set to "2lux,10lux,50lux"



With sufficient daylight, With insufficient daylight, After the last detection and
even when motion detected, when motion detected, light ON. the present hold time
light remains OFF. elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected, After people leave the detection After the last detection and
the sensor will switch on the area, light remains 100% the present hold time
light to 100% brighteness. brightness within hold time. elapsed, light OFF.

3. Function Demo - Dimmable control/Corridor function



With sufficient daylight, With insufficient After last detection, After the stand-by
even when motion daylight, when motion light will be dimmed period, light OFF.
detected, light remains detected, light ON. down to the stand-by
OFF. dimming level (10% or

30%) after holdtime.
