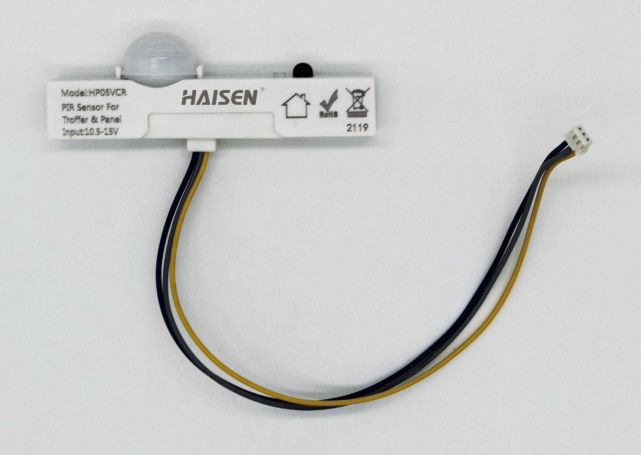

Remote Control LED Troffer PIR Motion Sensor Specially Designed

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HP05VCR
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time Standard Models Within 3 Weeks
Payment Terms D/A, D/P, T/T
Supply Ability 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Product Details
Color White Function 0-10V Dimming
Power 12VDC Control Remote Control
Model HP05VCR Operating Current >30mA
High Light

LED Troffer PIR Motion Sensor

,

30mA PIR Motion Sensor

,

12VDC Ceiling Pir Sensor

Leave a Message
Product Description

Remote Control LED Troffer PIR Motion Sensor Specially Designed



PIR Sensor 12VDC Specially Designed For LED Troffer Dimming Function







Operating Voltage

10.5-15V DC

Operating Current

>30mA

Microwave Frequency

5.8GHz±75MHz

Stand-by power

≤0.5W

Operating Current

<15mA

Programming

Remote Control HD05R

Detection Angle

Fresnel Lens ≤120° Fersnel Lens 360° Ceiling Mounted

Detection Range

Radius.<2m/6.56ft

Mounting Height

Max.6m/19.68ft Ceiling Mounted

Detection Area

25%/50%75%/100%

Hold Time

5s/30s/1min/3min/5min/10min/20min/30min

Daylight Threshold

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable

Stand-by Period

0s/10s/30s/1min/5min/10min/30min/60min/+∞

Stand-by dimming

10%/20%/30%/50%

IP Rating

IP20

Operating Temperature

-35°C~+70°C

Warranty

3 Years



Detection Pattern

Remote Control LED Troffer PIR Motion Sensor Specially Designed 0

Wiring Diagram

Remote Control LED Troffer PIR Motion Sensor Specially Designed 1

Performance

Remote Control LED Troffer PIR Motion Sensor Specially Designed 2
