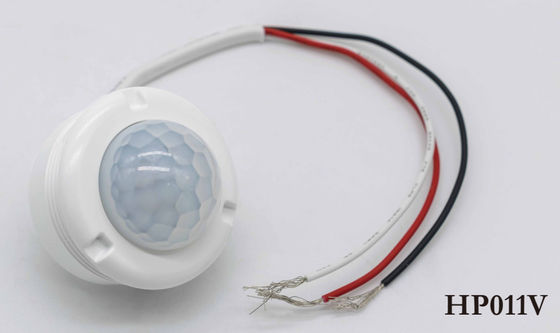

Compact Round PIR Sensor 12VDC Input Power With Remote Control

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HP011VR
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time Standard Models Within 3 Weeks
Payment Terms D/A, D/P, T/T
Supply Ability 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Product Details
Color White Power 12VDC
Control Remote Control Function 0-10V Dimming
Operating Current >30mA Products Round PIR Sensor
High Light

12VDC Round PIR Sensor

,

12VDC Compact PIR Sensor

,

30mA Compact PIR Sensor

Leave a Message
Product Description

Compact Round PIR Sensor 12VDC Input Power With Remote Control



Features

  • 12VDC Input
  • Corridor Bi-Level Dimming Function
  • Default Programmed
  • Easy Connection



Parameter Table



Detection Method PIR SENSOR
Operating Voltage 10.5-15V DC
Operating Current ≤30mA
PIR Wave Length 5-14um
Control Method ON/OFF & DIM
Warm-up Period 45s
Mounting height ≤4m/13.12ft
Detection range Radius.2.5-4m/8.20-13.12ft
Programming Default Programmed
IP Rating IP20
Operating Temperature -20°C~+60°C
Warranty 3 Years





Detection Range

Compact Round PIR Sensor 12VDC Input Power With Remote Control 0





Wiring Diagram

  • RED - 12VDC input
  • BLACK - GND/DIM-
  • WHITE - DIM+



Performance

Sensor turns light ON 100% once detect motion during the standby period.

After there's no motion detected, the sensor keeps light ON 100% for holdtime.

After holdtime, the sensor dims to 50% standby dimming level and keep for the 1st standby period.

After the 1st standby period, the sensor dims to 30% standby dimming level and keep for 2nd standby period.





Specification Download

HP011V 12VDC Compact Round PIR Sensor.pdf
