Classic Design ON / OFF Sensor Microwave Switch For Ceiling Light
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HAISEN |
| Certification: | TUV CE RED |
| Model Number: | HD01S-6 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 192pcs/CTN |
| Price: | Negotiable |
| Packaging Details: | Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton |
| Delivery Time: | Standard Models Within 2 Weeks |
| Payment Terms: | D/A, D/P, T/T |
| Supply Ability: | 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days |
|
Detail Information |
|||
| Color: | White | Function: | ON/OFF |
|---|---|---|---|
| Programming: | DIP Switch | Input: | 220-240VAC |
| High Light: | Classic Microwave Motion Sensor,Ceiling Light Microwave Motion Sensor,DIP Switch Microwave Motion Sensor |
||
Product Description

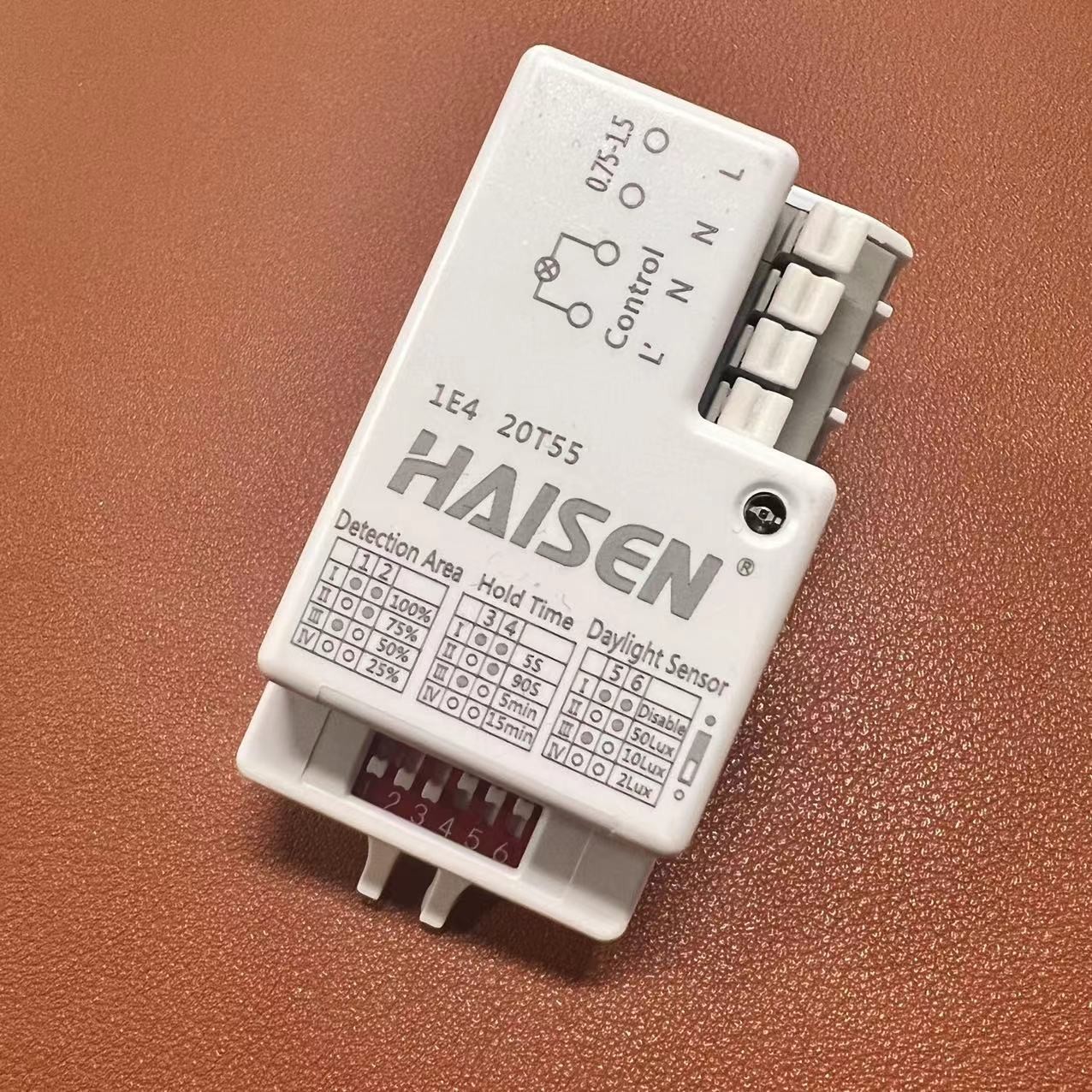

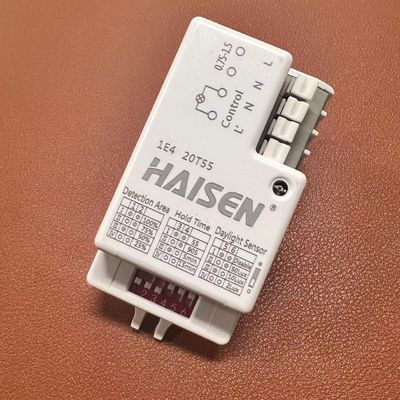

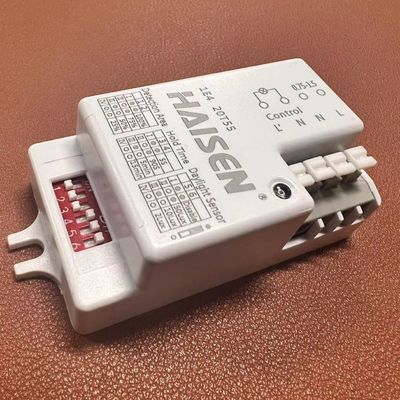

Classic Design Best Seller ON/OFF Sensor Microwave Switch For Ceiling Light
Specification Download:
HD01S-6 Switch Sensor For Ceiling Light.pdf
Features
- Automatically turn ON and OFF the sensor
- Widely applicated options for Detection Area, Daylight Threshold and Holdtime
- Compact sized particularly suitable for Ceiling lights or Bulkhead
- Easy Installation, 5 Years Warranty
Parameter Table
| Operating Voltage | 220-240VAC,50Hz/60Hz |
| Switching Capacity | Max.400W Control gear; Max.800W Incandescent lamp |
| Microwave Frequency | 5.8GHz±75MHz |
| Stand-by power | ≤0.5W |
| Control Method | ON/OFF |
| Programming | DIP Switches |
| Detection Angle | 150° Without Glass Cover |
| Detection Range | Max.6m/19.68ft |
| Mounting Height | Max.ø12m/39.37ft |
| Detection Area | 10%/50%/75%/100% |
| Hold Time | 5s/90s/5min/15min |
| Daylight Threshold | 2Lux/10Lux/50Lux/Disable |
| IP Rating | IP20 |
| Operating Temperature | -20°C~+55°C |
| Warranty | 5 Years |
Detection Range
Dimension(mm)
Wiring Diagram
Performance
