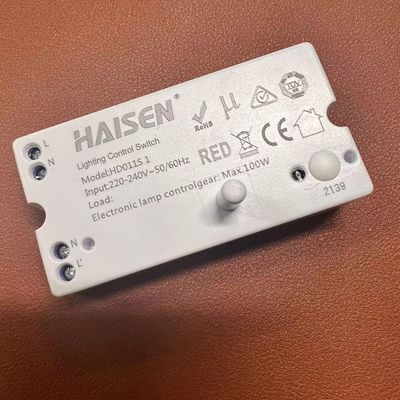

TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch

Place of Origin China
Brand Name HAISEN
Certification TUV CE RED
Model Number HD011S 1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time Standard Models Within 3 Weeks
Payment Terms D/A, D/P, T/T
Supply Ability 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Product Details
Color White Sensor Type Microwave Detecting
Programming DIP Switch Function ON/OFF
High Light

TUV Long Range Microwave Motion Sensor

,

IP20 Long Range Microwave Motion Sensor

,

TUV Wall Mount Motion Sensor

Leave a Message
Product Description

TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch



Hot Item ON/OFF Sensor Microwave Rod Antenna With DIP Switch At Back



Features

  • Automatically turn ON and OFF the sensor
  • Widely applicated options for Detection Area, Daylight Threshold and Holdtime
  • Compact size with unique rod antenna design
  • Easy Installation, 5 Years Warranty

Parameter Table

Operating Voltage 220-240VAC,50Hz/60Hz
Switching Capacity Max,100W
Microwave Frequency 5.8GHz±75MHz
Stand-by power ≤0.5W
Control Method ON/OFF

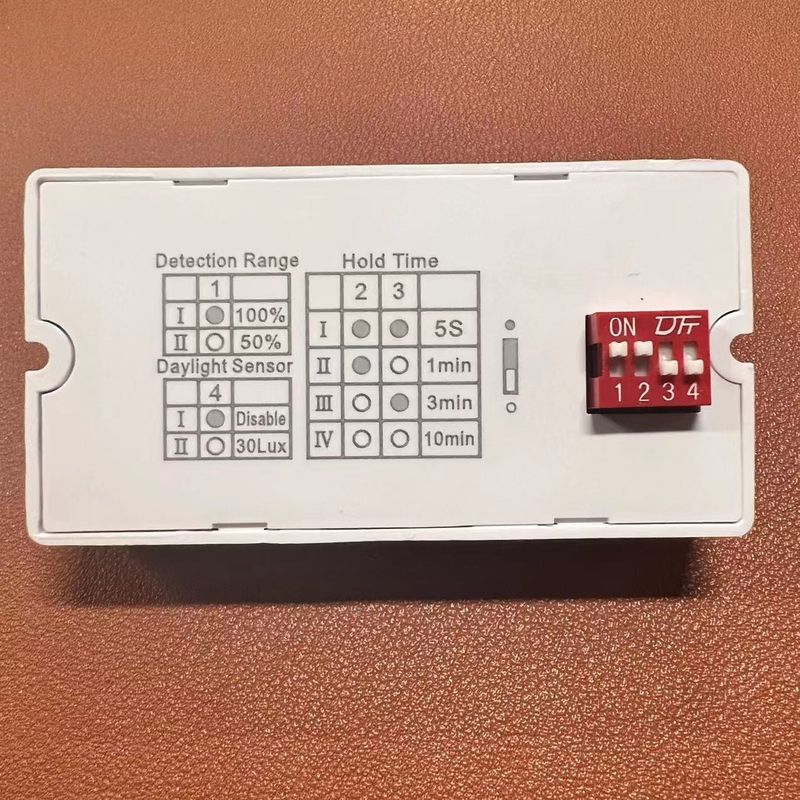

Programming DIP Switches
Detection Angle 150° Without Glass Cover
Detection Range Max.4m/13.12ft
Mounting Height Max.ø10m/32.8ft
Detection Area 50%/100%
Hold Time 5s/1min/3min/10min
Daylight Threshold 30Lux/Disable
IP Rating IP20
Operating Temperature -25°C~+60°C
Warranty 5 Years

*Not suitable for side-wall Mounting

Detection Range

TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch 0

Wiring Diagram

TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch 1

Performance

TUV CE RED Long Range Microwave Motion Sensor Wall Mount With DIP Switch 2
