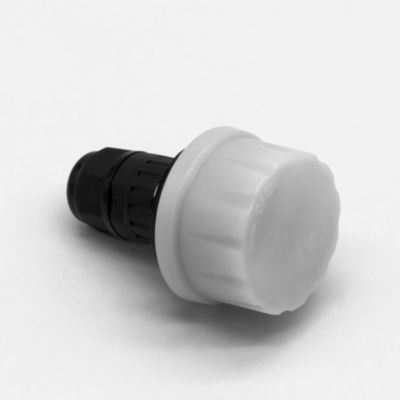

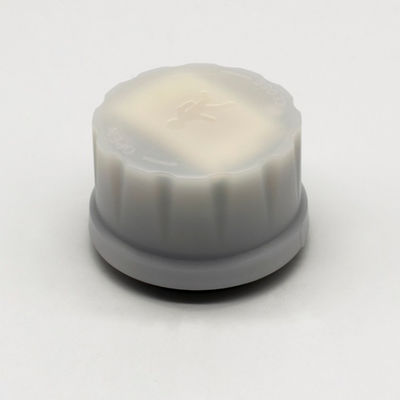

12VDC Zhaga 18 Receptacle Standard Microwave Sensor Dimming Highbay Use

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HD06VCRH 7B
Minimum Order Quantity 120pcs/CTN
Price Negotiable
Packaging Details Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time Standard Models Within 3 Weeks
Payment Terms D/A, D/P, T/T
Supply Ability 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Product Details
Color White Or Black Installation Zhaga 18 Receptacle
Power Input 12VDC Programming HD05R Remote Control
Leave a Message
Product Description

12VDC Zhaga 18 Receptacle Standard Microwave Sensor Dimming Highbay Use

Specification Download

HD06VCRH 7B 12VDC Zhaga Microwave Sensor Dimmable....



Features

  • Zhaga 18 standard receptacle, function pins 123
  • Easy installation, suitable for UFO highbay light
  • Optional sensor head, Daylight Sensor & Microwave Sensor & PIR Sensor
  • 12VDC Input, 0-10V dimming
  • HD05R LCD remote control

Parameter Table

Operating voltage 10.5-15V DC
Operating Current 30mA±5%
Stand-by power ≤0.5W
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+_x001e_∞
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Mounting height Max.15m ( 49.21ft )
Detection range Max.ø14m/45.93ft
Detection angle 30°-150°
Operating temperature -20°C~+60°C
IP rating IP65
Life time 50,000 hours
Warranty 5 years

Default Program

  • Detection area 100%
  •  Hold time 5s
  • Daylight threshold Disable
  • Stand-by period 0s
  • Stand-by dimming level 10%

Wiring Diagram

12VDC Zhaga 18 Receptacle Standard Microwave Sensor Dimming Highbay Use 0

Performance Function

* Daylight Priority

With Daylight priority function, the sensor is able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level.



* Daylight Threshold

With sufficient daylight, even when motion detected, light remains OFF.



* Bi-Level Dim

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

After holdtime, sensor dims light to standby dimming level (10% 20% 30% 50%) and keeps for a standby period.

After standby period,sensors turns OFF the light.



* ON/OFF

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

Preset standby period as 0S, sensor turns OFF the light after holdtime.
