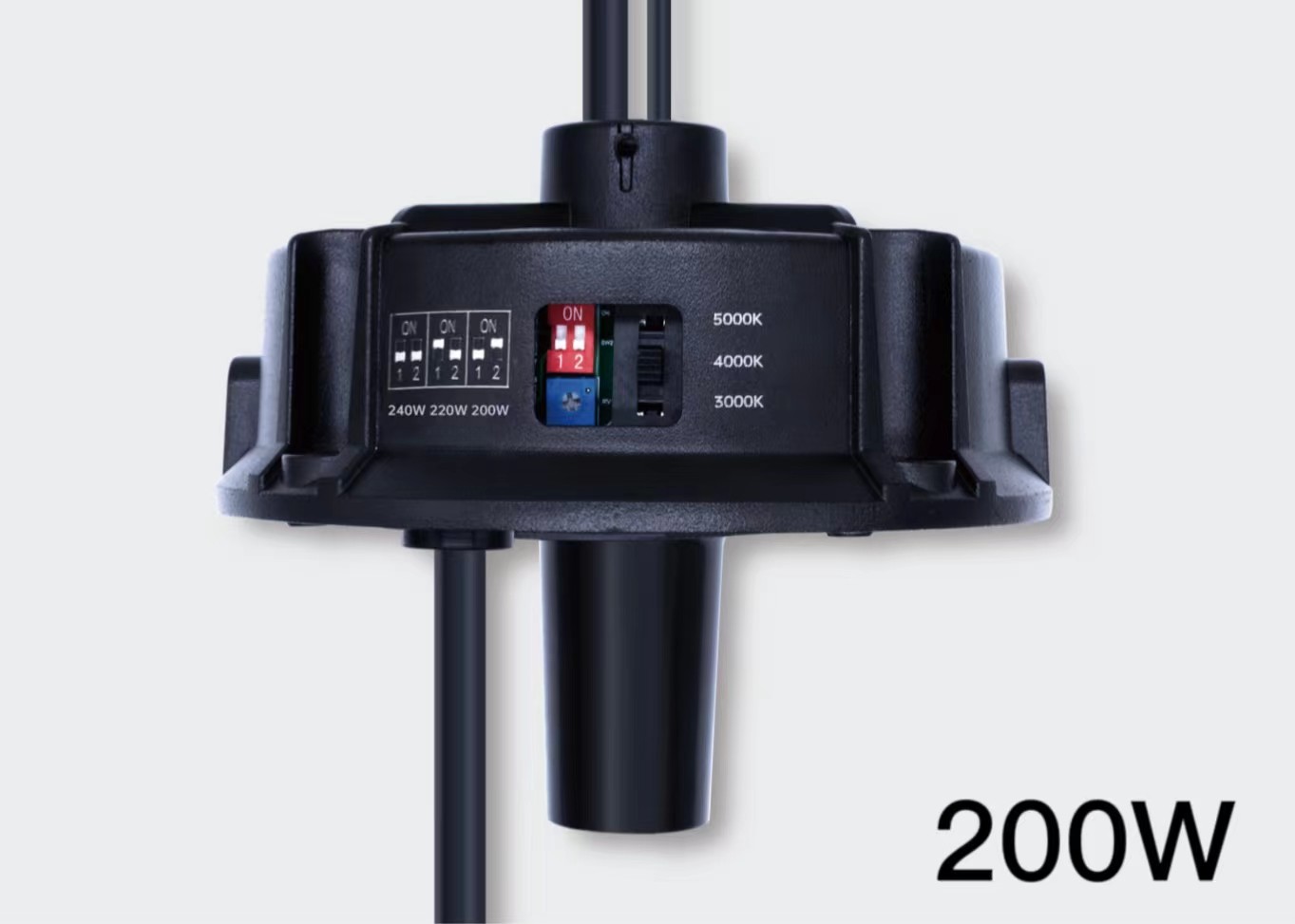

The Second Generation 200w Round Non Isolated Power Ufo Highbay Driver With Constant Current

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE/SAA/CCC
Model Number: ES-RND200C
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time: Standard Models Within 3 Weeks
Payment Terms: D/A, D/P, T/T
Supply Ability: 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Specifications Product Description Request A Quote
Color: Black
Products: UFO HIGHBAY Driver
Output Voltage: 350Vdc Max(@no Load);180-260Vdc
Input Power Max: 218W,@25℃,120Vac 260Vac
All-Around Protection: OTP, OVP, SCP
High Light:

CCC UFO Driver


200w Ufo Highbay Driver


Constant Current Ufo Highbay Driver

Product Description

The second generation 200W Round Non-Isolated Power UFO Highbay Driver With Constant Current


  • ES-RND200 0-10V Dimming series, is a 200W round non-isolated power driver with constant current.

  • The series is specially designed for LED industrial lighting, supplies with high efficiency

    appropriate heat radiation design and all-around protection of OTP, OVP and SCP, highly improved its reliability and lifespan.



  • High Efficiency(Up to 94%)

  • Two Stage Design, Flicker-Free

  • With Active PFC For High PF/ Low THD

  • Isolated dimming:0-10V PWM,Resistor

  •  With Auxiliary Power for 12V/200mA

  • Surge Protection: L-N:4KV, L/N-PE:6KV

  • All-Around Protection:OTP, OVP, SCP

  • Five-year warranty


Performance Parameters




Output voltage


350Vdc Max(@no load)



Output current adjustable range




Rated Output current




Rated Output voltage


180V Min ,260V Max (Po=Vo*Io=200W,full load)


 Output LF current ripple(<120Hz) at full load


Full power output voltage




92%@120Vac/95%@230Vac/95%@277Vac,full load@260Vdc




Input power Max


218W,@25℃,120Vac 260Vac


Input current


2.5Arms Max


Stand-by power
≤0.5W @220Vac


Input voltage range


Rated:100-277Vac Extreme:90-305Vac(Refer to the reduction curve)


Frequency range




Frequency range



PF≥0.99@120Vac, PF≥0.95@230Vac, PF≥0.93@277Vac,@full load,47-63Hz;

Other load conditions, please refer to power factor curve



Total harmonic distortion


THD≤10%,@230Vac,full load;

Please refer to: total harmonic distortion waveform


Inrush current(Typ.)


100A @230Vac, Ta=25℃,  cold star


Leakage current


<0.75mA @ 277Vac




Over temperature


Power derating, recovers automatically
after fault condition is removed


Over voltage protection


Hiccup mode, recovers automatically after

voltage fault condition is removed


Short circuit protection


Hiccup mode, recovers automatically after

load fault condition is removed




Environmental temperature


Ta:-40~55℃,please refer to load VS temperature curve


Ambient temp




Working humidity


10~95% RH, no condensation


Storage temp. and humidity


-40~+85℃, 5~95% RH


Environmental protection


UL Dry, Damp or Wet Location, IP65


Vibration protection


10~500Hz, 5G 12min./cycle, period for 72min. Each along X, Y, Z axes

Safety &EMC


Safety standard


IEC/EN61347-1(GB19510-1-2009), IEC/EN61347-2-13(GB 19510.14-2009),

UL8750, CSA C22.2 NO. 250.13-12;IP65 approved


Withstand voltage


Input-Aux:3.75KVac,Output-Aux:3.75KVac, Input-PE:1.5KVac,


Insulated resistance


I/P-PE,O/P-PE>100M Ohm/500VDC/25℃/70%RH






Harmonic current


EN61000-3-2 Class C


Surge protection






EN61000-4-2,3,4,5,6,8,11; EN61547 Industry standard











0.78Kg/See mechanical data for details


Case Color




Wiring diagram

*Please find the attached WIRING DIAGRAM*




1. The driver should be kept away from heat source and inflammable or explosive


2. The driver should be installed in open space. In actual application, Tc temperature should not exceed the max allowed temperature(89℃) in the most extreme condition.

3. With high voltage danger! Please don’t check under the condition of live working. Only professional electricians may carry out wiring and other operations.

4. Ensure that the input / output wires joint are completely sealed and waterproof-treated if required to prevent electric shock and leakage. The impedance caused by the connection mode in the application should not affect the normal function of the driver.

5. The driver lifespan is directly related to the driver working temperature. Please refer to the life&temperature curve to evaluate the applicability of the driver.

6. In practical application, please pay attention to the surge capacity of the front protector.

7. Pay attention to distance between wire & LED and the heatsink in practical application of non-isolated driver.



*Please contact us for more details*
