UL Certification HD418 UFO Sensor Suitable For Linear Highbay And Lowbay

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: UL CE
Model Number: HD418-LP/HP
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs/ctn
Price: Negotiable
Packaging Details: Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time: Standard Models Within 3 Weeks
Payment Terms: D/A, D/P, T/T
Supply Ability: 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Specifications Product Description Request A Quote
Height: 8-12M/ 26.24-39.37ft Max
Usage: Industrial Lighting
Power: 120-347VAC
Color: White
PIR Wave Length: 5-14um
Control Method: ON/OFF
High Light:

39.37ft UFO Sensor


347VAC UFO Sensor


Linear Highbay And Lowbay UL Sensor

Product Description

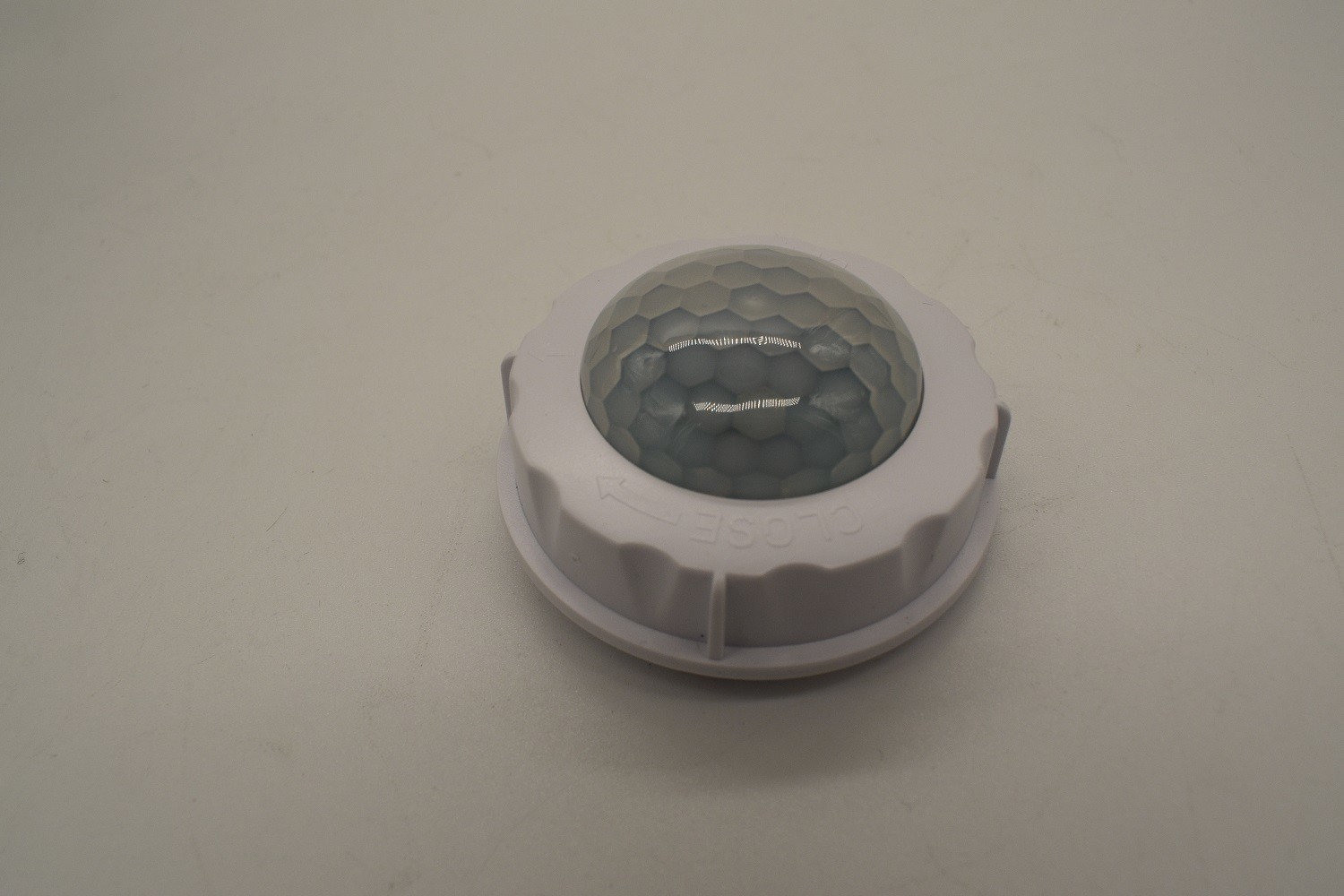

MotionSensor HD418 suitable for UFO and linear highbay and lowbay with UL


The sensor HD418 Motion Sensor with UL certificate, and suitable for Highbay and lowbay fixtures with max Mounting Height up to 12 meters/39.37 feet. You can control it by remote, it has many smart functions,likes Detection area​ and Daylight threshold and others.


  • It supports both PIR and Microwave sensor module
  • With knock-out and installation plate, suitable for UFO and linear highbay and lowbay
  • It supports 2 optional installation heights, 2.5-6M/8.2-19.68ft or 8-12M/26.24-39.37ft
  • Radius detection area reaches 4-6M/13.12-19.68ft
  • Remote control, 3 years warranty

Performance Parameters:

    Dimmable Version ON/OFF Version




PIR Sensor

Stand-by period 0s/10s/30s/1min/5min/10min/30min/60min/+∞ /
  Stand-by dimming level 10%/20%/30%/50% /
  PIR Wave Length 5- 14um
  Peak Output Signal ≥3500mW
  PIR Sensitivity ≥3200V/W
  Detection area 25%/50%/75%/100%
  Hold time 5s/30s/1min/3min/5min/10min/20min/30min
  Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable





120V:3.3A/400W(Control Gear); 800W (Ballast or Incandescent)

230V:3.5A/800W(Control Gear); 1600W(Ballast or Incandescent)

347V:0.6A/200W(Control Gear); 400W (Ballast or Incandescent)

  Control method ON/OFF
    1- 10V Dim
Output Operating voltage 120-347VAC,50Hz/60Hz
  Stand-by power <0.5W(230VAC)






Mounting height 2.5-6M/ 8.2- 19.68ft (ceiling mounted)
    8- 12M/ 26.24-39.37ft (ceiling mounted)
  Detection range Radius 9M/30ft Max
  Motion detection 0.5~1m/s
  Detection angle <120 ° (Without Glass Cover)
  Operating temperature -35°C ~ 60°C / -31℉~140℉
  IP rating IP20
  Certificate UL ROHS CE
  Remote HD05R
  Net Weight 304g
  Warranty 3 years
  Default Programming Detection Area 100%, Holdtime 5S, Daylight Threshold Disable, Standby Period 0S, Standby Dimming Level 10%

Wiring diagram:

UL Certification HD418 UFO Sensor Suitable For Linear Highbay And Lowbay 0

UL Certification HD418 UFO Sensor Suitable For Linear Highbay And Lowbay 1

Receptacle Options:

UL Certification HD418 UFO Sensor Suitable For Linear Highbay And Lowbay 2


  1.  Do NOT mount it outdoor, in case the outdoor temperature disturbs it.
  2.  Do NOT have it at places with suddenly changed temperature or airflow
  3.  Do NOT have shelves between sensor to the presence area.
