Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HAISEN |
| Certification: | NLC DLC |
| Model Number: | HD08VR-1 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 120pcs/ctn |
| Price: | Negotiable |
| Packaging Details: | Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton |
| Delivery Time: | Standard Models Within 3 Weeks |
| Payment Terms: | D/A, D/P, T/T |
| Supply Ability: | 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days |

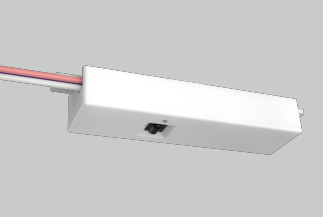

HD08VR-1 Sensor With NLC/DLC And Daylight Harvesting 12VDC With UL Certification
*HD08VR-1 Microwave Sensor Series.pdf Specification*
Features:
NLC/DLC Qualified Product.
Tiny Microwave Sensor with/out Bluetooth-Mesh, PIR Version Interchangeable.
0-10V Dimming, with Daylight Harvesting.
Suitable for Indoor Lighting, Panel, Troffer etc.
Sensor Parameter:
|
Detection Area |
25%/50%/75%/100% |
|
Holdtime
|
5s/30s/1min/2min/3min/5min/10min/15min/20min/25min/ 30min/45min/60min/90min/120min |
|
Daylight Threshold |
Disable/2lux/10lux/30lux/50lux/80lux/120lux/ 200Lux/250Lux/300lux/350Lux/400Lux |
|
Standby Dimming Level |
10%/20%/30%/50% |
|
Standby Period |
0s/5s/30s/1min/2min/3min/5min/10min/15min/20min/ 25min/30min/ 45min/60min/+∞ |
|
Dusk/Dawn Sensing/ Photocell |
Daylight threshold as 30Lux/50Lux/80Lux/120Lux/ 200Lux/250Lux/300Lux/350Lux/400Lux Standby period as +∞ ; Standby dimming level as 10%/20%/30%
|
| Daylight Harvesting |
1. Adjust "daylight" value higher than 50lux 2. Preset "standby period" 0S 3. press MW/PIR button 3 times till MW/PIR icons both blicking on LCD screen, daylight harvesting function enabled. (With BLE verison, press DH button, daylight harvesting function enabled.) |
Other Parameter:
|
Input Range |
12VDC |
|
Voltage Range |
10-15VDC |
|
Working Temp |
20°C~+60°C |
|
Certification |
UL (E529048) |
|
IP Rating |
IP20 |
Wiring Diagram:
